Introduction About PVC Presure Pipes

PVC pressure pipes are manufactured from unplasticised polyvinyl chloride polymer (a thermoplastic material) using the extrusion process. PVC (also known as PVC pipes are widely accepted for use in water supply, irrigation and sewerage rising mains.

Their high strength to weight ratio together with exceptional resistance to corrosion or chemical attack makes these pipes ideal for major infrastructure applications.

KAWSAR PVC pressure pipes meet the requirements of AS/NZS 1477 "PVC pipes and fittings for pressure applications" and the Water Services Association of Australia (WSAA) Reticulation Code WSA 03

Standard & Range of KAWSAR PVC Presssure PipesTANDARDS

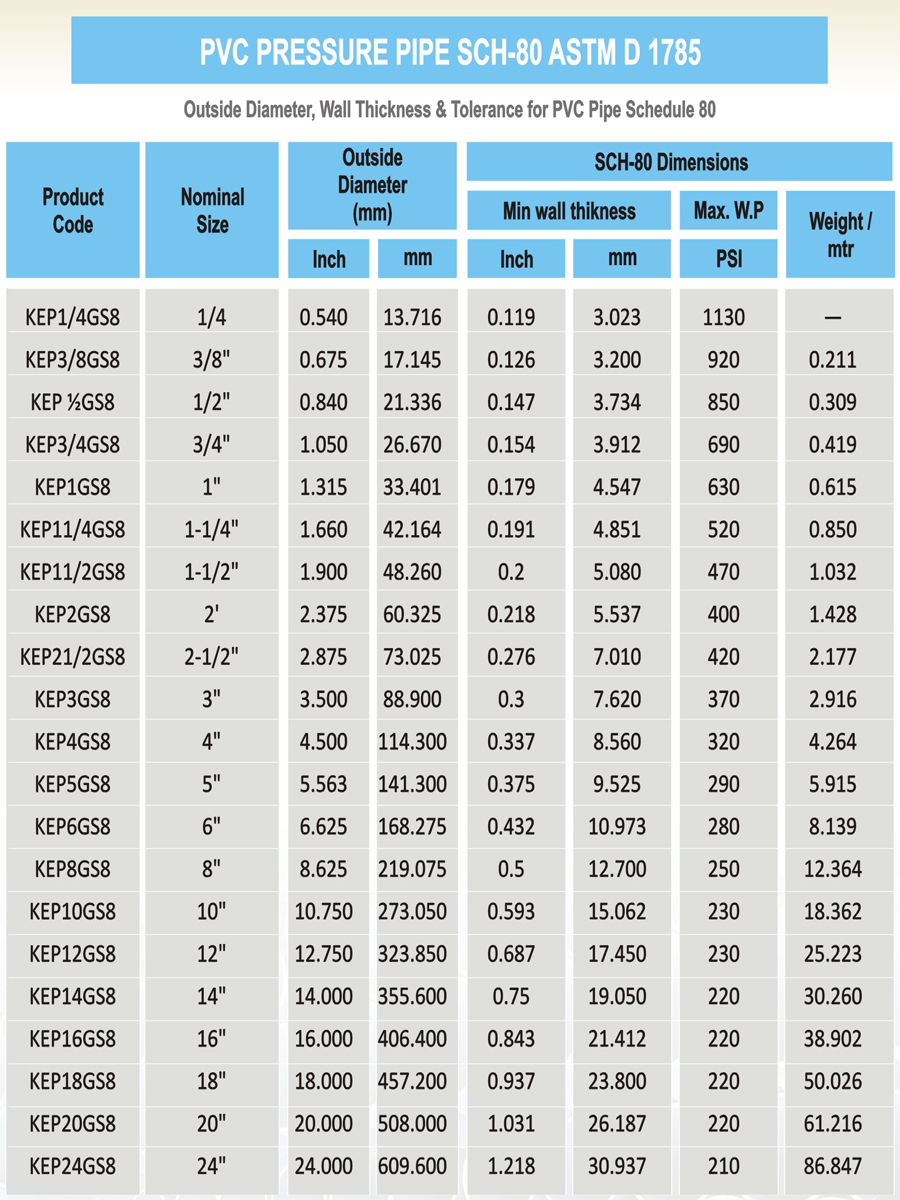

ASTM D-1785-94 Sch-40, 80 & 120
BS-3505-86 & PSI-3051-1991
DIN 8061 and DIN 8062

PVC Pipes Application

Water Supply
Pressure Piping
Sewerage
Vent & Drain System
Irrigation
Potable Water Supply
Chemical Installation
Water treatment
Swimming Pools
Food Stuff Industrial
Industrial Piping

PRODUCT SPECIFICATIONS

PVC Schedule 40 Solid Wall Pipe and PVC DWV Fitting System

System:

This specification cover PVC Schedule 40 solid wall pipe and PVC DWV fitting used in sanitary drain, waste, and vent (DWV), sewer, and storm drainage applications. This system is intended for use in non-pressure application where the operating temperature will not exceed 140°F

Specification:

Pipe and fitting shall be manufactured from virgin rigid PVC (polyvinyl Chloride) vinyl compounds with a Cell Class of 12454 as identified in ASTMD D 1784.

PVC Schedule 40 pipe shall be Iron Pipe Size (IPS) conforming to ASTM D 1785 and ASTM D 2665. PVC DWV fittings shall conform to ASTM D 2665. All system shall utilize a separate waste and vent system. Pipe and fittings shall conform to NSF International Standard 14

Installation shall comply with the latest installation instructions published by and shall conform to all applicable plumbing, building, and fire code requirements. Buried pipe shall be installed in accordance with ASTM D 2321 and ASTM F 656 and solvent cement conforming to ASTM D 2564, the system shall be protected from chemical agents, fire stopping materials, thread sealant, plasticized vinyl products, or other aggressive chemical agent not compatible with PVC compounds. System shall be hydrostatically tested after installation.

WARNING! Never test with or transport/store compressed air or gas in PVC pipe or fittings.

Referenced Standards:

ASTM D 178 Rigid Vinyl Compounds

ASTM D 1785 PVC Plastic Pipe, Schedule 40

ASTM D 2665 PVC Drain, Waste, and Vent Pipe & Fittings

ASTM D 2564 Solvent Cements for PVC pipe and Fittings

ASTM D 2321 Underground Installation of Thermoplastic Pipe (non- pressure application)

ASTM F 1668 Procedures for Buried Plastic Pipe

N S F Standard 14 Plastic Piping Components and Related Materials

PVC Schedule 40 Pressure Pipe and Fittings System

Scope:

This specification covers PVC Schedule 40 pipe and fittings for pressure applications. This system is intended for pressure applications where the operating temperature will not exceed 140° F.

Specification:

Pipe and fittings shall be manufactured from virgin rigid PVC (polyvinyl chloride) Vinyl compounds with a Cell Class of 12454 as identified in ASTM D 1784.

PVC Schedule 40 pipe shall be iron Pipe Size (IPS) conforming to ASTM D 1785. PVC Schedule 40 fittings shall conform to ASTM D 2466. Pipe and fittings shall be manufactured as system. Pipe and fittings shall conform to NSF Standard 14.

Installation shall comply with the lasts installation instructions published by Kawsar Pipe and Foundry and shall conform to all applicable plumbing, building, and fire code requirements. Buried pipe shall be installed in accordance with ASTM F 1668 and ASTM D 2774. Solvent cement joints shall be made in a two-step process with primer conforming to ASTM F 656 and solvent cement conforming to ASTM D 2564. The system shall be protected from chemical agents, fire stopping materials, thread sealant, plasticized vinyl products, or other aggressive chemical agent not compatible with PVC compounds. Systems shall be hydrostatically tested after installation. WARNING! Never test with or transport/store compressed air or gas in PVC pipe or fittings.

Referenced Standards:

ASTM D 1784	Rigid Vinyl Compounds
STM D 1785	PVC Plastic Pipe, Schedule 40
STM D 2466	PVC Plastic Fittings, Schedule 40
ASTM D 2564	Solvent Cements for PVC Pipe and Fittings
ASTM D 2774	Underground Installation of Thermoplastic Pressure Piping
ASTM F 656	Primers for PVC Pipe and Fittings
ASTM F 1668	Procedures for Buried Plastic Pipe
